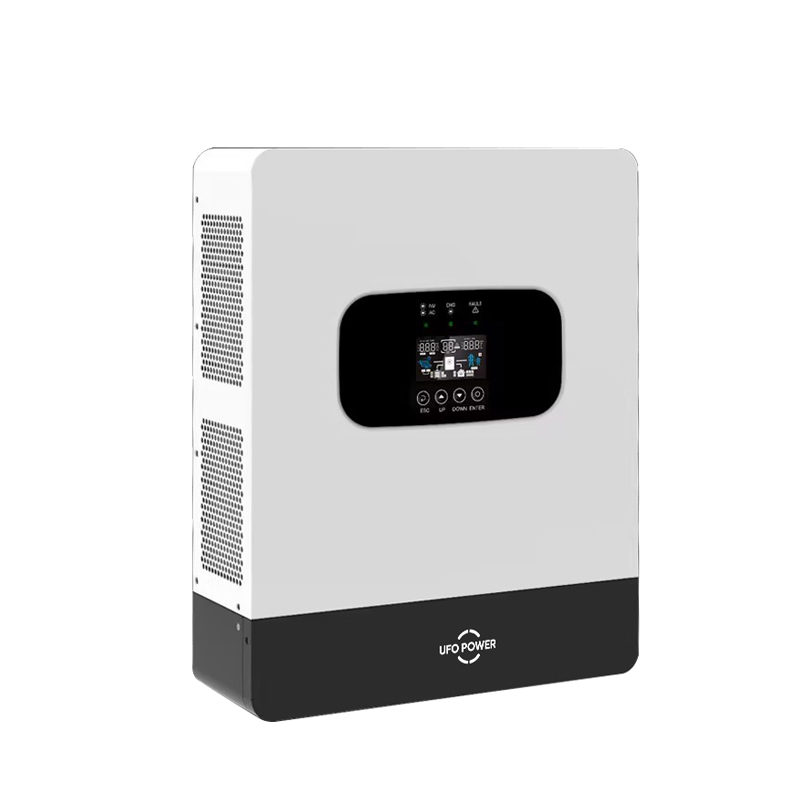

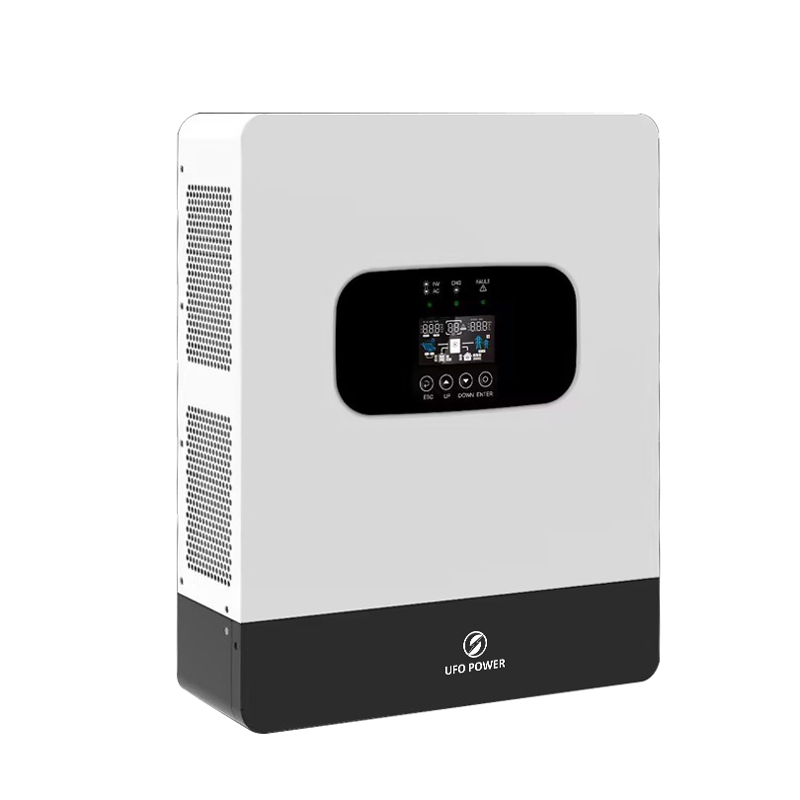

UFO-POWER Single Phase Off-Grid Inverter. 1.8-3.6KVA, 100/145V/230V, 12/24V, IP21 design. Pure sine wave output, support LFP & SLA battery, 2 years warranty. Certified: CE, EN 62109-1, EN 62109-2, IEC 61000.
CategoryItemGPEO-1K8L1-MGPEO-3K6L1-M
PV (DC Input)Recommended max. PV input power650W1500W
Max. input voltage(Voc)130V145V
MPPT operating voltage range15V-120V (@21V start up)30V-120V (@36V start up)
Number of MPPT11
Max. number of input strings per MPPT11
Max. input current per MPPT20A25A
Max. short-circuit current per MPPT25A27A
Grid (AC Input)Max input power2300W4600W
Max input current10A20A
Rated grid voltage220/230/240Vac (L,N,PE)220/230/240Vac(L,N,PE)
Rated grid frequency50/60Hz50/60Hz
Acceptable range170-280Vac (For UPS);<br>90-280Vac (For Home Appliances)170-280Vac (For UPS);<br>90-280Vac (For Home Appliances)
Battery parametersBattery typeLiFePO4 / Lead-acidLiFePO4 / Lead-acid
Battery voltage range9.5V~14.5V20-30V
Rated Battery Voltage12Vdc24Vdc
Max. charge/discharge current105A / 150A120A / 180A
Back-up OutputRated output power1500W / 1500VA3000W / 3000VA
Rated output current7.8A15.6A
Rated output voltage220/230/240Vac(L,N,PE)220/230/240Vac(L,N,PE)
Frequency50/60Hz50/60Hz
Surge power3600VA 2s7200VA 2s
THDv (@ linear load)<3%<3%
Switching time10ms typical (For UPS) 20ms typical (For Home Appliances)10ms typical (For UPS) 20ms typical (For Home Appliances)
EfficiencyPeak efficiency95%95%
Max. MPPT efficiency93%92%
ProtectionInner protection√ Output short-circuit protection√ Output overvoltage protection
Surge protectionPV: Type III, AC: Type III
IP ratingIP21
General ParametersOperating temperature range-10°C ~ 50°C
Relative humidity range5%~95%5%~95%
Max. operating altitude>2000m derating
Standby self-consumption<10W
Installation typeWall-mounted
Cooling modeFan cooling
CommunicationRS232RS232/RS485
DisplayLCD
Mechanical SpecificationsInverter dimensions (L*W*H) mm350*290*108
Net weight (kg)5.56.0
Carton dimensions (L*W*H) mm495*385*165
Gross weight (kg)6.57.0
Warranty Period2 Years

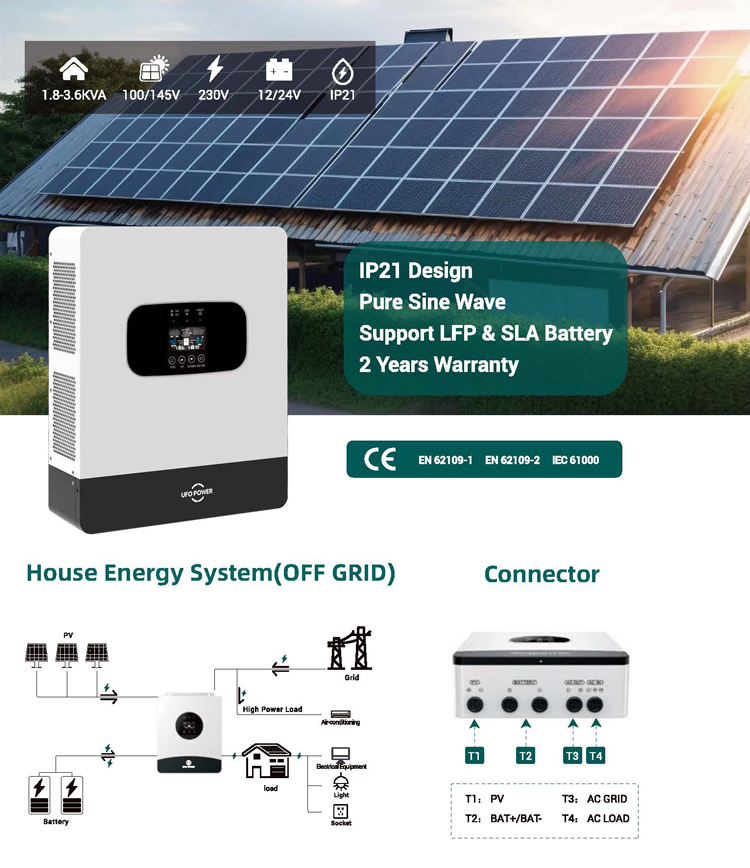

Single Phase Off-Grid Inverter-GPEO-1K8L1-M2.jpg

CategoryItemGPEO-1K8L1-MGPEO-3K6L1-M
PV (DC Input)Recommended max. PV input power650W1500W
Max. input voltage(Voc)130V145V
MPPT operating voltage range15V-120V (@21V start up)30V-120V (@36V start up)
Number of MPPT11
Max. number of input strings per MPPT11
Max. input current per MPPT20A25A
Max. short-circuit current per MPPT25A27A
Grid (AC Input)Max input power2300W4600W
Max input current10A20A
Rated grid voltage220/230/240Vac (L,N,PE)220/230/240Vac(L,N,PE)
Rated grid frequency50/60Hz50/60Hz
Acceptable range170-280Vac (For UPS);<br>90-280Vac (For Home Appliances)170-280Vac (For UPS);<br>90-280Vac (For Home Appliances)
Battery parametersBattery typeLiFePO4 / Lead-acidLiFePO4 / Lead-acid
Battery voltage range9.5V~14.5V20-30V
Rated Battery Voltage12Vdc24Vdc
Max. charge/discharge current105A / 150A120A / 180A
Back-up OutputRated output power1500W / 1500VA3000W / 3000VA
Rated output current7.8A15.6A
Rated output voltage220/230/240Vac(L,N,PE)220/230/240Vac(L,N,PE)
Frequency50/60Hz50/60Hz
Surge power3600VA 2s7200VA 2s
THDv (@ linear load)<3%<3%
Switching time10ms typical (For UPS) 20ms typical (For Home Appliances)10ms typical (For UPS) 20ms typical (For Home Appliances)
EfficiencyPeak efficiency95%95%
Max. MPPT efficiency93%92%
ProtectionInner protection√ Output short-circuit protection√ Output overvoltage protection
Surge protectionPV: Type III, AC: Type III
IP ratingIP21
General ParametersOperating temperature range-10°C ~ 50°C
Relative humidity range5%~95%5%~95%
Max. operating altitude>2000m derating
Standby self-consumption<10W
Installation typeWall-mounted
Cooling modeFan cooling
CommunicationRS232RS232/RS485
DisplayLCD
Mechanical SpecificationsInverter dimensions (L*W*H) mm350*290*108
Net weight (kg)5.56.0
Carton dimensions (L*W*H) mm495*385*165
Gross weight (kg)6.57.0
Warranty Period2 Years

Single Phase Off-Grid Inverter-GPEO-1K8L1-M2.jpg
