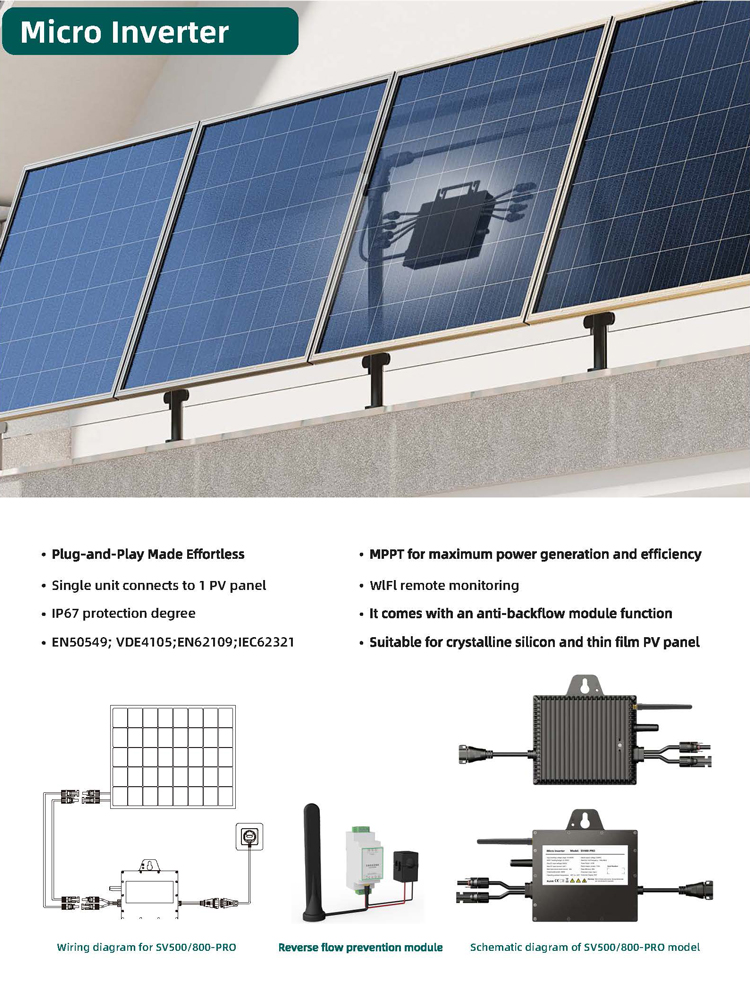

UFO-POWER Micro Inverter SV500-PRO. Plug-and-play design, single unit connects to 1 PV panel, IP67 protection. MPPT for max efficiency, anti-backflow module, WiFi remote monitoring. Suitable for crystalline silicon & thin film PV panels. Certified: EN50549, VDE4105, EN62109, IEC62321.
CategoryItemSV500-PROSV800-PRO
Input Data (DC)
DC InputRecommended solar panel input power200-530W × 1200-430W × 2
Number of DC input connectionsMC4 × 1MC4 × 2
Max. input voltage60V60V
Max input short-circuit current20A20A*2
PV Operating voltage16-60V16-60V
Start-up voltage22V22V
MPPT tracking range22-55V22-55V
MPPT tracking accuracy>99.5%>99.5%
Max. continuous input current16A*114A*2
Output Data (AC)
AC OutputMax. continuous output power500W800W
Nominal output voltage230V230V
Operating voltage range190-270V190-270V
Max. continuous output current2.17A3.47A
Nominal output frequency50Hz/60Hz50Hz/60Hz
Output frequency range47.5-51.5Hz / 57.5-62.5Hz47.5-51.5Hz / 57.5-62.5Hz
THD<5%<5%
Power factor>0.99>0.99
Peak efficiency96%96%
Protective classClass IClass I
Protection & General
GeneralOperating ambient temp-40°C to +65°C
Indication light quantityWorking status: LED light
Communication connection modeWi-Fi / 2.4G
Cooling methodNatural cooling (no fan)
Working environmentIndoor and Outdoor
Weight1.9kg
Size (L*W*H) mm181 × 193 × 38.5mm
Protection degreeIP67
