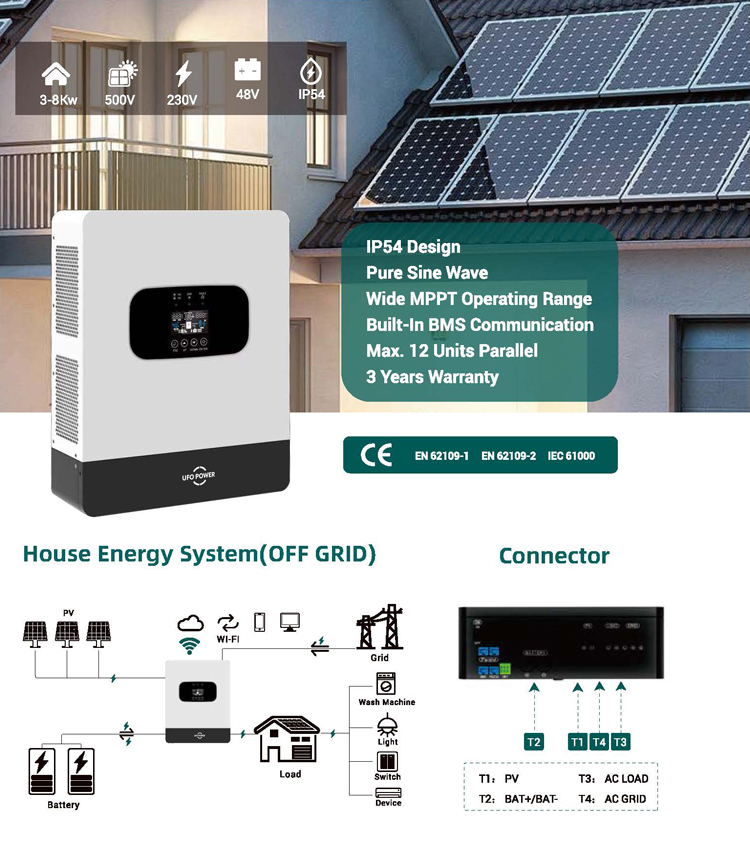

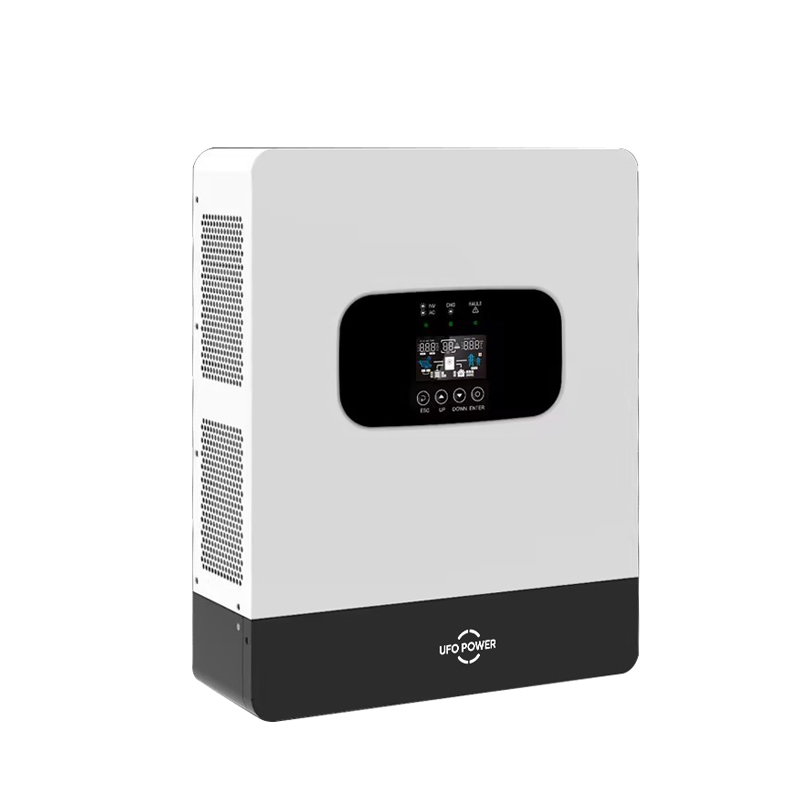

UFO-POWER Single Phase Off-Grid Inverter GPEO-3KL1. 3-8kW, 500V/230V/48V, IP54 design. Pure sine wave output, wide MPPT operating range, built-in BMS communication, max. 12 units parallel, 3 years warranty. Certified: CE, EN 62109-1, EN 62109-2, IEC 61000.
CategoryItemGPEO-3KL1GPEO-04KL1 PRO-1GPEO-06KL1 PRO-1GPEO-08KL1-1
PV (DC Input)Recommended max. PV input power4500W6000W8000W16000W
Max.input voltage(Voc)500V500V500V500V
MPPT operating voltage range85V-450V (@85V start up)
Number of MPPT1112
Max. number of input strings per MPPT1122
Max. input current per MPPT15A15A27A27/27A(MAX:54A)
Max. short-circuit current per MPPT18A18A32A32A/32A
Grid (AC Input)Max input power4600W6440W11500W14950W
Max input current20A28A50A65A
Rated grid voltage220/230/240Vac
Rated grid frequency50/60Hz
Acceptable range170-280Vac(For UPS); 90-280Vac (For Home Appliances)
Battery parameters (Bidirection)Battery typeLiFePO4 /Lead-acid
Battery voltage range20-30Vdc20-30Vdc40-60Vdc40-60Vdc
Rated Battery Voltage24Vdc24Vdc48Vdc48Vdc
Max. charge/discharge current120A/160A120A/160A120A/130A160A/180A
BMS communication modeRS485
Back-up Output (AC Output)Rated output power3000W/3600VA4000W/4000VA (Twin output)6000W/6000VA (Twin output)8000W/8000VA (Twin output)
Rated output current15.6A18.2A27.3A36.4A
Rated output voltage/Frequency220/230/240Vac 50/60Hz
Parallel CapacitySingle-phase Max. 12 units;
Three-phase Max. 12 units		-Single-phase Max. 12 units;
Three-phase Max. 12 units		Single-phase Max. 9 units;
Three-phase Max. 12 units
Surge power7200VA 2s8000VA 5s12000VA 5s16000VA 5s
THDv (@ linear load)<3%
Switching time10ms typical (For UPS) 20ms typical (For Home Appliances)
EfficiencyPeak efficiency95%95%98%98%
Max. MPPT efficiency99.9%99.9%99.9%99.9%
ProtectionInner protection√Output short-circuit protection √Output overvoltage protection
Surge protectionPV: Type III, AC: Type III
IP ratingIP54IP54IP54IP54
General ParametersOperating temperature range-10°C~ 55°C-10°C~ 55°C-10°C~ 55°C-10°C~ 55°C
Relative humidity range10%~95%5%~95%5%~95%5%~95%
Max. operating altitude>2000m derating
Standby self-consumption<10W<10W<10W<20W
Installation typeWall-mounted
Cooling modeFan cooling
CommunicationRS232/RS485RS232/RS485RS232/RS485RS232/RS485/Dry contact/WI-Fi
DisplayLCD
Mechanical SpecificationsInverter dimensions (L*W*H)(mm)395*315*105445*347*120445*347*120520*420*125
Net weight (kg)7.99.212.417.5
Carton dimensions (L*W*H)(mm)495*385*165560*465*240560*465*240590*490*205
Gross weight (kg)911.414.619.45
Warranty Period3 Years

Single Phase Off-Grid Inverter-GPEO-3KL1-3 years3.jpg

CategoryItemGPEO-3KL1GPEO-04KL1 PRO-1GPEO-06KL1 PRO-1GPEO-08KL1-1
PV (DC Input)Recommended max. PV input power4500W6000W8000W16000W
Max.input voltage(Voc)500V500V500V500V
MPPT operating voltage range85V-450V (@85V start up)
Number of MPPT1112
Max. number of input strings per MPPT1122
Max. input current per MPPT15A15A27A27/27A(MAX:54A)
Max. short-circuit current per MPPT18A18A32A32A/32A
Grid (AC Input)Max input power4600W6440W11500W14950W
Max input current20A28A50A65A
Rated grid voltage220/230/240Vac
Rated grid frequency50/60Hz
Acceptable range170-280Vac(For UPS); 90-280Vac (For Home Appliances)
Battery parameters (Bidirection)Battery typeLiFePO4 /Lead-acid
Battery voltage range20-30Vdc20-30Vdc40-60Vdc40-60Vdc
Rated Battery Voltage24Vdc24Vdc48Vdc48Vdc
Max. charge/discharge current120A/160A120A/160A120A/130A160A/180A
BMS communication modeRS485
Back-up Output (AC Output)Rated output power3000W/3600VA4000W/4000VA (Twin output)6000W/6000VA (Twin output)8000W/8000VA (Twin output)
Rated output current15.6A18.2A27.3A36.4A
Rated output voltage/Frequency220/230/240Vac 50/60Hz
Parallel CapacitySingle-phase Max. 12 units;
Three-phase Max. 12 units		-Single-phase Max. 12 units;
Three-phase Max. 12 units		Single-phase Max. 9 units;
Three-phase Max. 12 units
Surge power7200VA 2s8000VA 5s12000VA 5s16000VA 5s
THDv (@ linear load)<3%
Switching time10ms typical (For UPS) 20ms typical (For Home Appliances)
EfficiencyPeak efficiency95%95%98%98%
Max. MPPT efficiency99.9%99.9%99.9%99.9%
ProtectionInner protection√Output short-circuit protection √Output overvoltage protection
Surge protectionPV: Type III, AC: Type III
IP ratingIP54IP54IP54IP54
General ParametersOperating temperature range-10°C~ 55°C-10°C~ 55°C-10°C~ 55°C-10°C~ 55°C
Relative humidity range10%~95%5%~95%5%~95%5%~95%
Max. operating altitude>2000m derating
Standby self-consumption<10W<10W<10W<20W
Installation typeWall-mounted
Cooling modeFan cooling
CommunicationRS232/RS485RS232/RS485RS232/RS485RS232/RS485/Dry contact/WI-Fi
DisplayLCD
Mechanical SpecificationsInverter dimensions (L*W*H)(mm)395*315*105445*347*120445*347*120520*420*125
Net weight (kg)7.99.212.417.5
Carton dimensions (L*W*H)(mm)495*385*165560*465*240560*465*240590*490*205
Gross weight (kg)911.414.619.45
Warranty Period3 Years

Single Phase Off-Grid Inverter-GPEO-3KL1-3 years3.jpg
