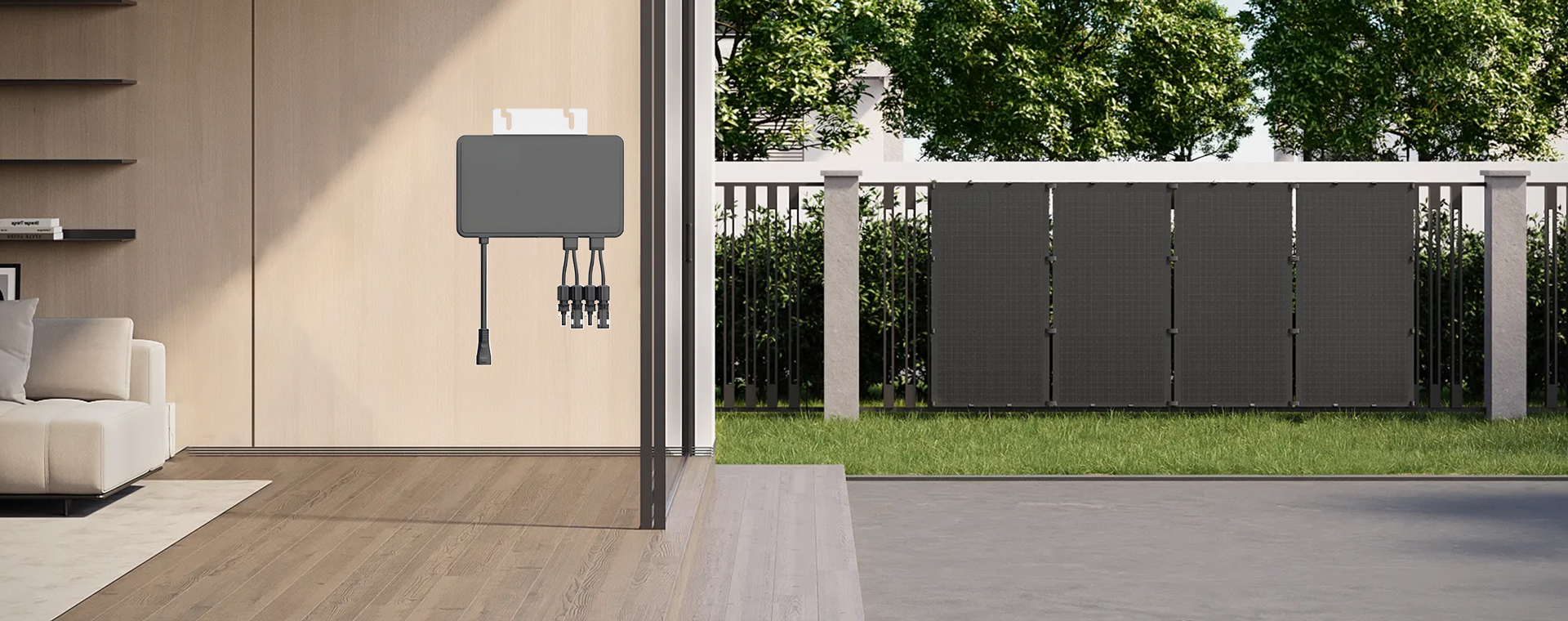

background

The EQ-1000-P features two independent MPPT and PLC communication to track the maximum power point of each PV module. When one module is shaded, the other module continues togenerate power at the maximum power point, thereby increasing the overall power generation.Additionally, its lightweight design and intelligent monitoring capabilities make the photovoltaic system operate more stably and efficiently.

The EQ-1000-P features two independent MPPT and PLC communication to track the maximum power point of each PV module. When one module is shaded, the other module continues togenerate power at the maximum power point, thereby increasing the overall power generation.Additionally, its lightweight design and intelligent monitoring capabilities make the photovoltaic system operate more stably and efficiently.
Model NameEQ-1000-P
Input (DC)
PV module compatibility(400-700)W * 2
Maximum input voltage60V
Minimum starting voltage22V
Operating voltage range12-60V
MPPT voltage range16-58V
Max continuous input DC current20A × 2
Max DC short circuit current25A × 2
MPPT quantity2
DC port overvoltage classII
Output (AC)
Peak output power1000VA
Rated apparent power1000VA
Rated voltage/range230V / 184-276V
Rated output current4.55A
Rated frequency50Hz
Frequency range±5Hz
Default power factor>0.99
Adjustable power factor0.8 leading ~ 0.8 lagging
THD<3%
Efficiency parameter
Peak efficiency97.5%
European efficiency96.8%
MPPT efficiency99.8%
General parameters
Ambient temperature-40℃ ~ +65℃
Storage temperature-40℃ ~ +85℃
Relative humidity0% - 100% RH
DC interfaceMC4
Dimensions (W×H×D)268×164.5×31.5mm
Net weight2.85Kg (exclude mounting plate)
Protection classIP67
Cooling methodNatural heat dissipation
Pollution classClass 3
Max altitude4000m
Others
Communication modePLC
Isolation modeTransformer isolation
Compliance & Warranty
Safety StandardIEC/EN 62109-1, IEC/EN 62109-2
EMC StandardIEC/EN 61000-6-1, IEC/EN 61000-6-3
Grid CertificationEN 50549-1, VDE-AR-N 4105, DIN VDE V 0124-100, TOR typeA+R25
Limited Warranty15 years
Model NameEQ-1000-P
Input (DC)
PV module compatibility(400-700)W * 2
Maximum input voltage60V
Minimum starting voltage22V
Operating voltage range12-60V
MPPT voltage range16-58V
Max continuous input DC current20A × 2
Max DC short circuit current25A × 2
MPPT quantity2
DC port overvoltage classII
Output (AC)
Peak output power1000VA
Rated apparent power1000VA
Rated voltage/range230V / 184-276V
Rated output current4.55A
Rated frequency50Hz
Frequency range±5Hz
Default power factor>0.99
Adjustable power factor0.8 leading ~ 0.8 lagging
THD<3%
Efficiency parameter
Peak efficiency97.5%
European efficiency96.8%
MPPT efficiency99.8%
General parameters
Ambient temperature-40℃ ~ +65℃
Storage temperature-40℃ ~ +85℃
Relative humidity0% - 100% RH
DC interfaceMC4
Dimensions (W×H×D)268×164.5×31.5mm
Net weight2.85Kg (exclude mounting plate)
Protection classIP67
Cooling methodNatural heat dissipation
Pollution classClass 3
Max altitude4000m
Others
Communication modePLC
Isolation modeTransformer isolation
Compliance & Warranty
Safety StandardIEC/EN 62109-1, IEC/EN 62109-2
EMC StandardIEC/EN 61000-6-1, IEC/EN 61000-6-3
Grid CertificationEN 50549-1, VDE-AR-N 4105, DIN VDE V 0124-100, TOR typeA+R25
Limited Warranty15 years
