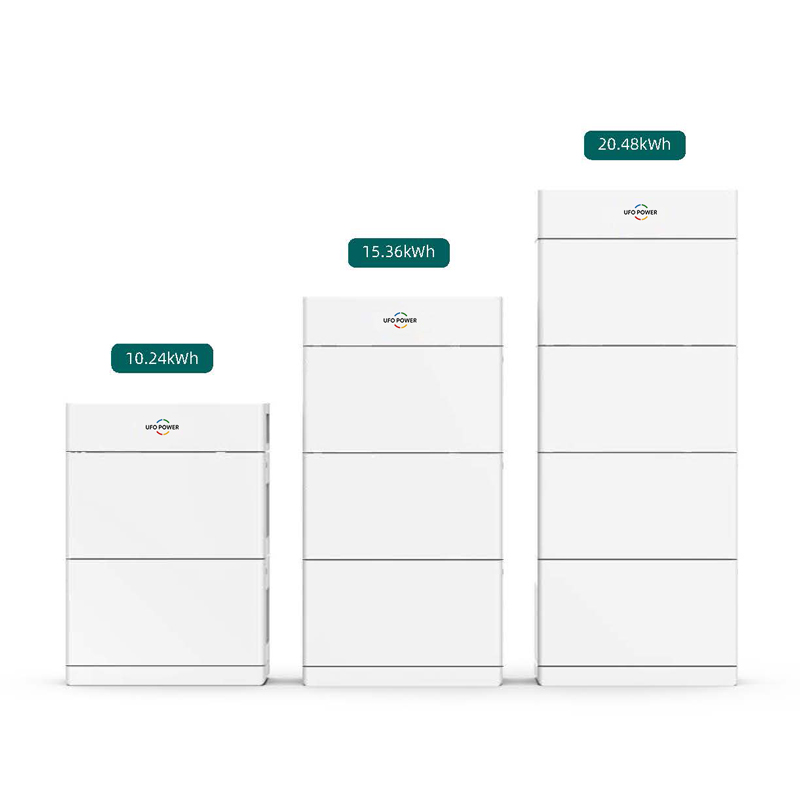

UFO-POWER LOW Voltage Stackable Battery Pack

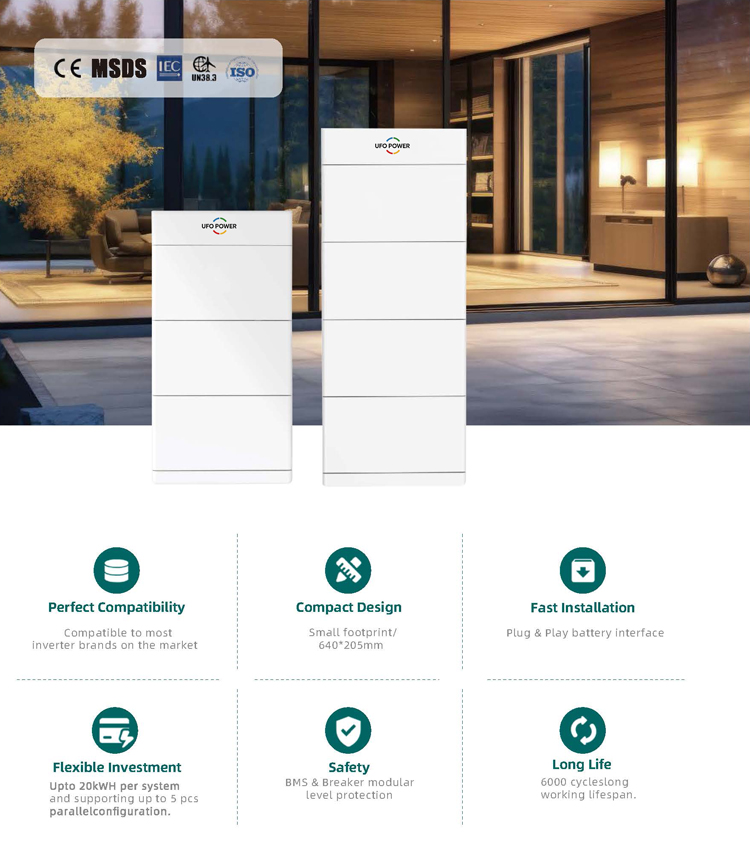

This home energy storage battery features perfect compatibility with most mainstream inverter brands, compact 640*205mm space-saving design, and plug-and-play fast installation. It supports flexible parallel expansion up to 5 units & 20kWh maximum system capacity, comes with full BMS & breaker modular safety protection, and delivers an ultra-long 6000-cycle service lifespan for stable household solar energy backup.
ModelTG-SS-51LVP2TG-SS-51LVP3TG-SS-51LVP4
Rate voltage(Vdc)51.2
Energy storage(KWH)10.2415.3620.48
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Months self discharge≤2%
Charge voltage(V)56
Max. charge current(A)200
Max. discharge current(A)200
Discharge cut-off voltage(VDC)43.2
Charge cut-off voltage(VDC)58.4
Charge temperature0℃ ~ 50℃@60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃@60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃@60 ± 25% Relative Humidity
IP classIP65
Case typeStand Stack
Product dimension L*W*H(mm)640*205*897640*205*1239640*205*1581
Package dimension L*W*H(mm)760*335*450*2
705*395*240*1		760*335*450*3
705*395*240*1		760*335*450*4
705*395*240*1
Net weight(kg)14+48*214+48*314+48*4
Gross weight(kg)21+53*221+53*321+53*4
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDS, CE-EMC, IEC62619, 63056

UFO-POWER LOW Voltage Stackable Battery Pack.jpg

ModelTG-SS-51LVP2TG-SS-51LVP3TG-SS-51LVP4
Rate voltage(Vdc)51.2
Energy storage(KWH)10.2415.3620.48
Cycle life25±2℃, 0.5C/0.5C, EOL70%≥6000
Months self discharge≤2%
Charge voltage(V)56
Max. charge current(A)200
Max. discharge current(A)200
Discharge cut-off voltage(VDC)43.2
Charge cut-off voltage(VDC)58.4
Charge temperature0℃ ~ 50℃@60 ± 25% Relative Humidity
Discharge temperature-20℃ ~ 50℃@60 ± 25% Relative Humidity
Storage temperature-20℃ ~ 50℃@60 ± 25% Relative Humidity
IP classIP65
Case typeStand Stack
Product dimension L*W*H(mm)640*205*897640*205*1239640*205*1581
Package dimension L*W*H(mm)760*335*450*2
705*395*240*1		760*335*450*3
705*395*240*1		760*335*450*4
705*395*240*1
Net weight(kg)14+48*214+48*314+48*4
Gross weight(kg)21+53*221+53*321+53*4
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
CertificatesUN38.3, MSDS, CE-EMC, IEC62619, 63056

UFO-POWER LOW Voltage Stackable Battery Pack.jpg
