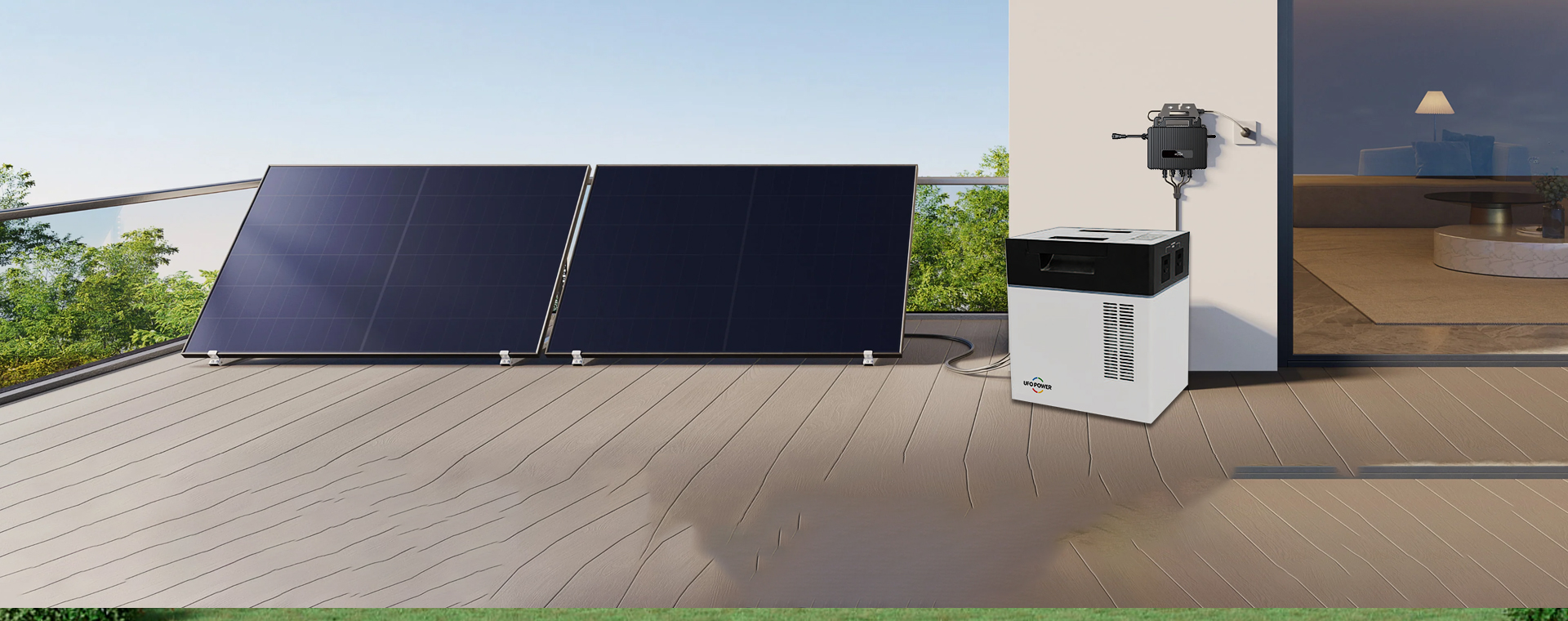

AIKO-A450-MAH54Mw Balcony PV & Storage System. Save 650kWh/year, 19000kWh lifecycle. Tool-free installation, foldable & compact storage. Anti-backflow protection, plug & play modular design. Scenarios: patio, garden, balcony, on-the-go power. 2kWh/4kWh options.
ItemSpecification
Module Base Info
Cell TypeN-Type ABC
Glass3.2 mm tempered glass
FrameAnodized aluminum
Cable4mm²(IEC) 12AWG(UL) +1200mm
No. of Cells108(6*18)
Junction BoxIP68, 3 bypass diodes
ConnectorOriginal MC4
Weight20.6kg±3%
Dimension1757*1134*30mm
Package Detail37pcs per pallet / 222pcs per 20'GP / 962pcs per 40'HC
Installation Guide
Operation Temperature-40℃ - +85℃
Maximum Series Fuse Rating25A
Protection ClassClass II
VOC and ISC Tolerance±3%
Maximum System VoltageDC1500V
Maximum Static LoadingFront 5400Pa Back 2400Pa
Hail Test25 mm diameter hail at 23 m/s
Fire RatingIEC Class C
Core Parameters
Battery chemistryLithium-iron phosphate (LiFePO4)
Battery capacity2009.6Wh (with built in lithium battery cell)
Cell capacity314Ah
Battery cell lifespan11000 cycles@(25℃, 100%DOD, 0.5P, @70%SOH)
Work environment
Operating / Storage TempCharging: 0℃~40℃ / Discharging: -20℃~40℃ / Storage: -20℃ to 60℃
Elevations≤3000m
Humidity level10%-90%
Protection levelIP20
Size & Weight
Net weight18.3kg (Net Weight)
DimensionsL285*W210*H311 mm
Product Parameters
Rated power1000W
AC input voltage220~240 [VAC] @ typical value
AC input frequency50Hz/60Hz @ typical value
AC charging power1000W
AC output voltage220~240 [VAC] @ typical value (Bypass Mode) / 230 [VAC] @ typical value (Stored Energy Mode)
Operating Frequency50Hz/60Hz @ typical value
PV input voltage12-50 [VDC]
Max. PV input Current20A
Max. PV input power450W
AC outletAustralian/Chinese/British/European/American/South African/Universal
Battery level indicatorLCD display
Protection
Protection FunctionsAC Input Over/Under Voltage Protection / AC Output Overcurrent Protection
PV Input Reverse Connection Protection / PV Input Power Limitation
Battery Overcharge / Over Discharge Protection / Battery Cell High/Low Temperature Protection
Internal Overtemperature Protection / Short Circuit Protection

Balcony PV& Storage System-AIKO-A450-MAH54Mw2.jpg
