UFO-POWER High Voltage Stackable Battery Pack

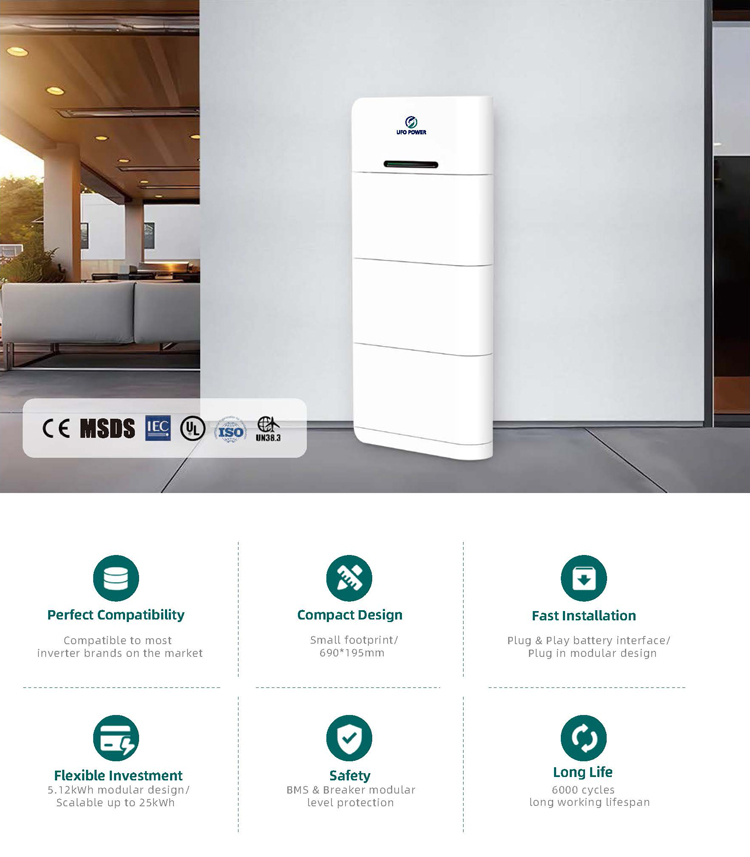

This UFO-POWER low voltage stackable battery pack features perfect compatibility with mainstream inverter brands worldwide. Adopting ultra-compact space-saving design with only 690*195mm small footprint, it supports plug & play modular interface for extremely quick and convenient installation. Built with flexible 5.12kWh modular capacity expansion, the system can be freely scaled up to 25kWh to match diverse household energy demands. Equipped with professional BMS and multi-level circuit breaker safety protection, it delivers full-cycle reliable operation safety. Boasting up to 6000 long charge-discharge cycles, it ensures ultra-durable, stable long-life power supply for residential solar energy storage scenarios.
ModelTG-SS-HV2TG-SS-HV3TG-SS-HV4TG-SS-HV5
Electrical Characteristics
Rate voltage(Vdc)192288384480
Cell combination(S1P)30SIP*2S30SIP*3S30SIP*4S30SIP*5S
Rate capacity(AH)50
Energy storage(KWH)9.614.419.224
Cycle life25±2℃, 0.5C/0.5C, EOL70% ≥ 6000
Charge/Discharge Standard
Charge voltage(V)210315420525
Max. charge current(A)50
Max. discharge current(A)50
Discharge cut-off voltage(VDC)162243324405
Charge cut-off voltage(VDC)216324432540
Enviornment
Charge temperature0°C~50°C@60 ± 25% Relative Humidity
Discharge temperature-20°C~50°C@60 ± 25% Relative Humidity
Storage temperature-20°C~50°C@60 ± 25% Relative Humidity
Mechanical
IP classIP65
Material systemLiFePO4
Case materialMetal
Case typeStand Stack
Product dimension L*W*H(mm)680*185*1035680*185*1425680*185*1815680*185*2205
Package dimension L*W*H(mm)780*295*450*3780*295*450*4780*295*450*5780*295*450*6
Net weight(kg)14+49*214+49*314+49*414+49*5
Gross weight(kg)21+53*221+53*321+53*421+53*5
Communication
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
Certificates
PackUN38.3, MSDS
CellUN38.3, MSDS, IEC62619, CE, UL1973, UL2054

High Voltage Stackable Battery Pack 2.jpg

ModelTG-SS-HV2TG-SS-HV3TG-SS-HV4TG-SS-HV5
Electrical Characteristics
Rate voltage(Vdc)192288384480
Cell combination(S1P)30SIP*2S30SIP*3S30SIP*4S30SIP*5S
Rate capacity(AH)50
Energy storage(KWH)9.614.419.224
Cycle life25±2℃, 0.5C/0.5C, EOL70% ≥ 6000
Charge/Discharge Standard
Charge voltage(V)210315420525
Max. charge current(A)50
Max. discharge current(A)50
Discharge cut-off voltage(VDC)162243324405
Charge cut-off voltage(VDC)216324432540
Enviornment
Charge temperature0°C~50°C@60 ± 25% Relative Humidity
Discharge temperature-20°C~50°C@60 ± 25% Relative Humidity
Storage temperature-20°C~50°C@60 ± 25% Relative Humidity
Mechanical
IP classIP65
Material systemLiFePO4
Case materialMetal
Case typeStand Stack
Product dimension L*W*H(mm)680*185*1035680*185*1425680*185*1815680*185*2205
Package dimension L*W*H(mm)780*295*450*3780*295*450*4780*295*450*5780*295*450*6
Net weight(kg)14+49*214+49*314+49*414+49*5
Gross weight(kg)21+53*221+53*321+53*421+53*5
Communication
Protocol(Optional)CAN/RS485/RS232
MonitoringBluetooth/WLAN Optional
Certificates
PackUN38.3, MSDS
CellUN38.3, MSDS, IEC62619, CE, UL1973, UL2054

High Voltage Stackable Battery Pack 2.jpg
