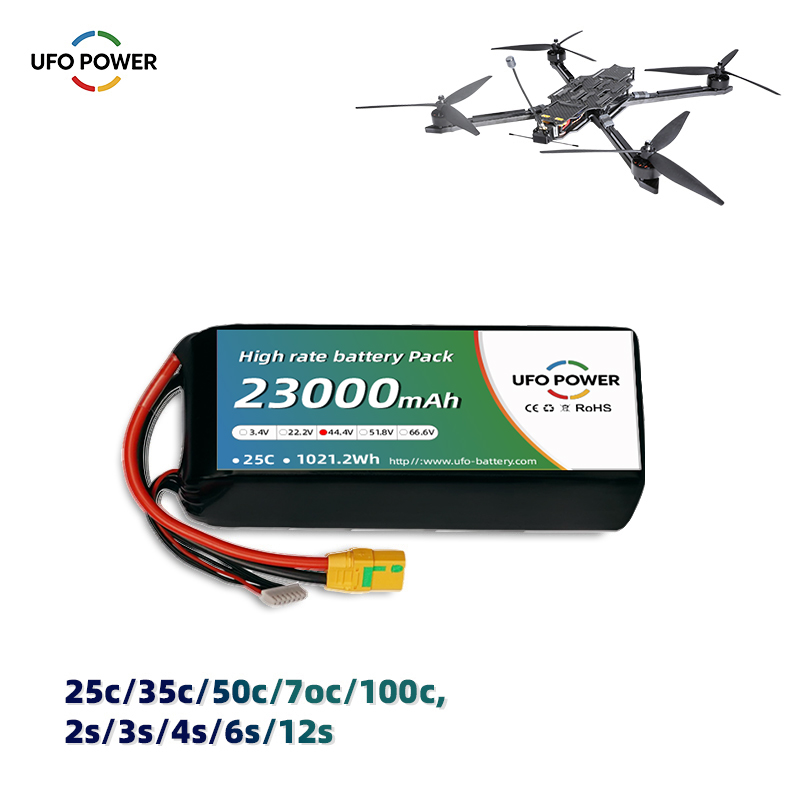

| UFO POWER 23000mAh 1021.2Wh 44.2V 25C Semi-solid-state FPV Drone Battery (12S, 300Wh/kg) |
|
| UFO POWER 23000mAh 1021.2Wh high-rate Semi-solid-state FPV Drone Battery featuring 44.2V (12S) configuration with advanced Semi-solid LiNiMnCoO2 (NMC) lithium technology. Delivers an impressive 25C continuous high-rate discharge with exceptional 300Wh/kg energy density and 500 charge-discharge cycles across a wide -20°C to 60°C operating range. Lightweight design at only 760g with compact 32×66×172mm dimensions, engineered specifically for 18 inch FPV drones, heavy-lift UAVs, and demanding high-drain drone applications. |
|
| Product Details |
|
| The UFO POWER 23000mAh 1021.2Wh high-rate FPV drone battery utilizes advanced Semi-solid LiNiMnCoO2 (NMC) chemistry for exceptional 25C discharge performance, enhanced safety, and stable power delivery. This 12S (44.2V nominal, 12 cells in series) high-voltage configuration delivers robust power output for professional 18 inch FPV racing, freestyle, long-range FPV missions, and demanding high-drain applications. Each unit is engineered for 500 charge-discharge cycles of consistent capacity retention. The battery measures only 32×66×172mm and weighs just 760g, with a wide -20°C to 60°C operating temperature range. This ultra-lightweight high-rate battery combines high capacity with 25C discharge capability, making it ideal for FPV applications requiring both extended flight time and high power output. |
|
| Technical Specifications |
|
| Brand | UFO POWER |
|
| Model Number | UHV-23000mAh-Semi-solid-state Battery |
|
| Battery Type | Semi-solid LiNiMnCoO2 (NMC) High Rate |
|
| Cathode Material | LiNiMnCoO2 (NMC) |
|
| Configuration | 12S (12 Cells in Series) |
|
| Nominal Voltage | 44.2V (12S) |
|
| Nominal Capacity | 23000mAh / 23Ah |
|
| Total Energy | 1021.2Wh |
|
| Discharge Rate | 25C (High Rate) |
|
| Energy Density | 300Wh/kg |
|
| Weight | 760g ± 30g (~0.76 KG) |
|
| Dimensions (L×W×H) | 32 × 66 × 172 mm |
|
| Cycle Life | 500 Cycles |
|
| Operating Temperature | -20°C ~ +60°C |
|
| Max Load Quantity (cells) | 12 Cells |
|
| Application | FPV Drone / Drone / Robot Vacuum Cleaner / 18 Inch FPV |
|
| Place of Origin | Guangdong, China |
|

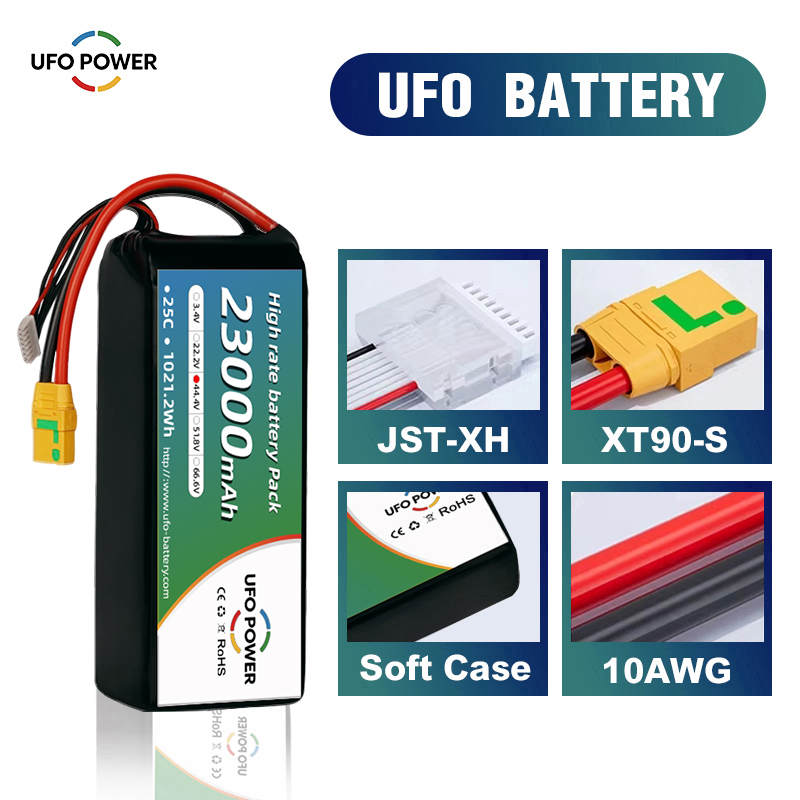

| Connector | XT90S-F (or custom) |
|
| Pricing (FOB) |
|
| 1 - 9 Pieces | US $245.00 / piece |
|
| 10 - 999 Pieces | US $243.00 / piece |
|
| ≥ 1,000 Pieces | US $239.00 / piece |
|
| Lead Time |
|
| 1 - 10 Pieces | 7 Days |
|
| > 10 Pieces | To be negotiated |
|
| Features |
|
| 25C High Rate Discharge | Extreme power for FPV racing and freestyle |
|
| 300Wh/kg High Energy Density | Extended flight time for FPV missions |
|
| 12S High Voltage (44.2V) | High-efficiency FPV power delivery |
|
| Semi-solid NMC Technology | Enhanced safety and thermal stability |
|
| 1021.2Wh High Capacity | Long FPV flight endurance |
|
| Ultra-Lightweight 760g | Minimizes FPV payload penalty |
|
| Customizable | Drawing, sample, and full customization available |
|
