| UFO POWER 22000mAh 488.4Wh 22.2V 25C Lithium-ion Battery Pack for Drone Surveying & Security | ||

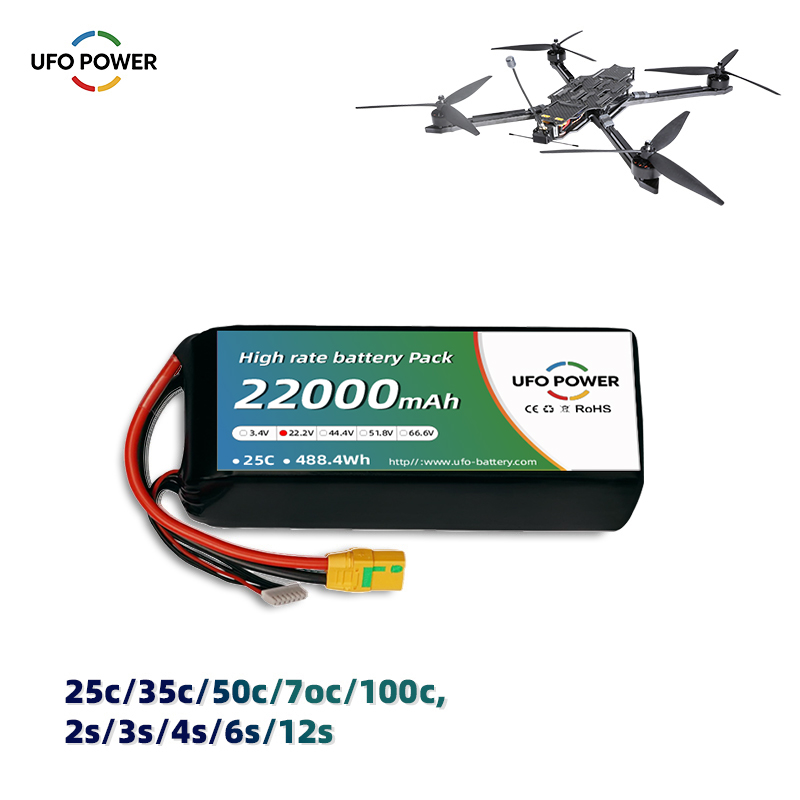

| UFO POWER 22000mAh 488.4Wh high-performance Lithium-ion Battery featuring 22.2V (6S1P) configuration with advanced Liquid lithium technology. Delivers 25C high-rate continuous discharge with 500 charge-discharge cycles across a wide -20°C to 60°C operating range. Weighs only 2.53KG with compact 64×91×207mm dimensions, engineered for professional UAV surveying, security surveillance, and demanding high-drain drone applications. | ||
| Product Details | ||
| The UFO POWER 22000mAh 488.4Wh high-rate drone battery utilizes advanced Liquid lithium-ion chemistry for exceptional 25C discharge performance and enhanced safety. This 6S1P (22.2V nominal, 6 cells in series) configuration delivers stable high power output for professional UAV applications including aerial surveying, security surveillance, mapping, and high-drain inspection missions. Each unit is engineered for 500 charge-discharge cycles of consistent capacity retention. The battery measures 64×91×207mm and weighs 2.53KG, with a wide -20°C to 60°C operating temperature range. Equipped with XT90S-F connector, this high-rate battery is designed for demanding applications requiring both high capacity and high discharge capability. | ||
| Technical Specifications | ||
| Brand | UFO POWER | |
| Model Number | UHV-22000mAh-25C-22.2V-6S1P-XT90S-F | |
| Battery Type | Liquid (Li-ion) High Rate | |
| Cathode Material | Lithium-ion | |
| Configuration | 6S1P (6 Cells in Series) | |
| Nominal Voltage | 22.2V (6S) | |
| Nominal Capacity | 22000mAh / 22Ah | |
| Total Energy | 488.4Wh | |
| Discharge Rate | 25C (High Rate) | |
| Cycle Life | 500 Cycles | |
| Weight | 2530g ± 30g (~2.53 KG) | |
| Dimensions (L×W×H) | 64 × 91 × 207 mm | |
| Operating Temperature | -20°C ~ +60°C | |
| Max Load Quantity (cells) | 6 Cells | |

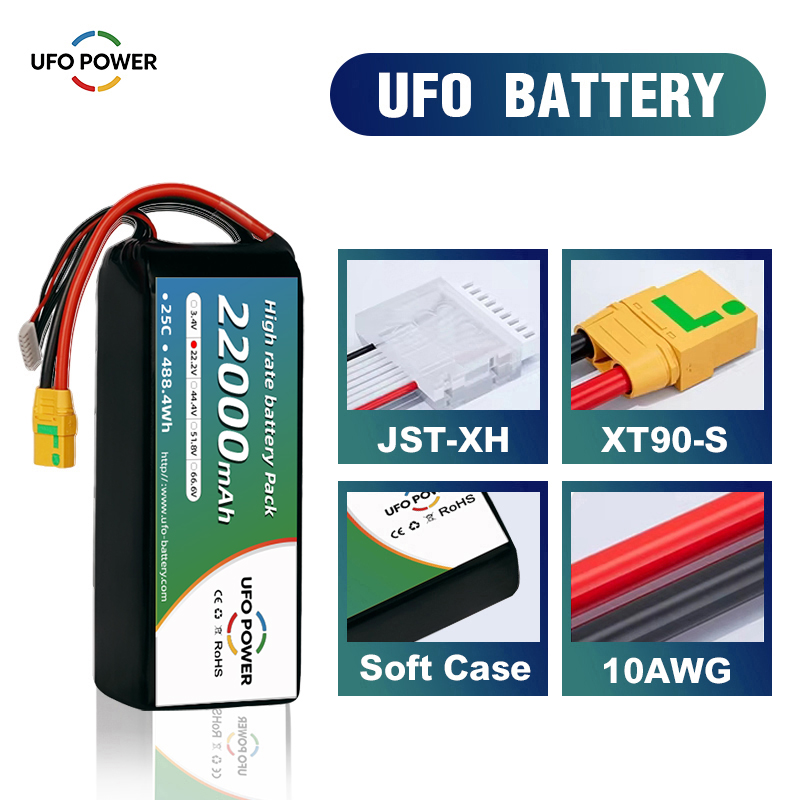

| Connector | XT90S-F | |
| Application | Drone / UAV / Surveying / Security / High Drain Applications | |
| Place of Origin | Guangdong, China | |
| Pricing (FOB) | ||
| 1 - 9 Pieces | US $118.62 / piece | |
| 10 - 999 Pieces | US $108.66 / piece | |
| ≥ 1,000 Pieces | US $92.78 / piece | |
| Lead Time | ||
| 1 - 10 Pieces | 7 Days | |
| > 10 Pieces | To be negotiated | |
| Customization Options | ||
| Drawing-based Customization | Available | |
| Sample-based Customization | Available | |
| Full Customization | Available | |
