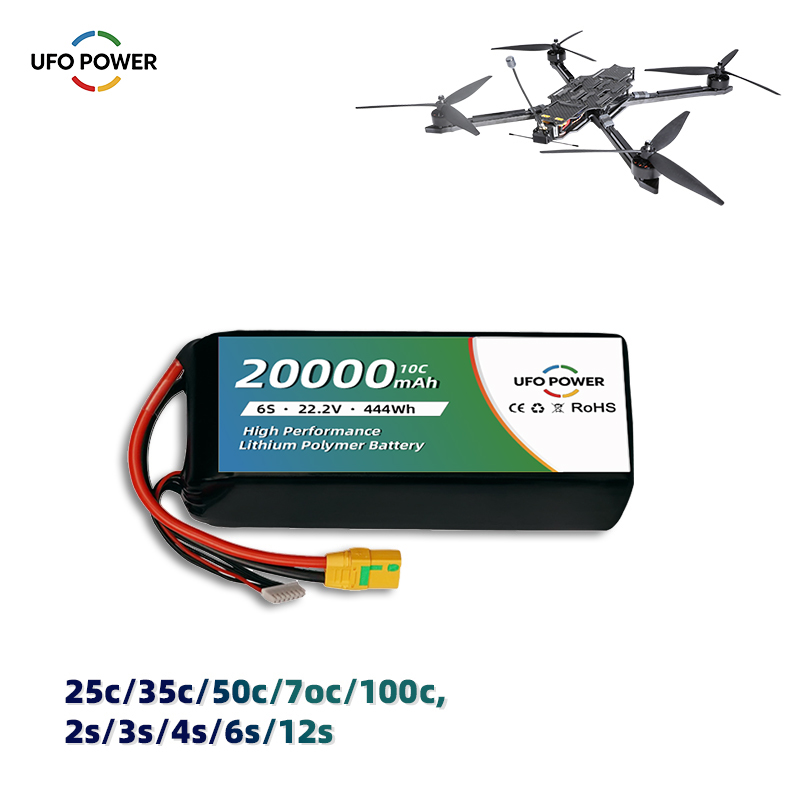

| UFOPOWER 20000mAh 22.2V 6S Semi-Solid State Battery Pack | |
| Parameter | Specification |
| Model No. | TAA200006S5X9S |
| Nominal Voltage | 22.2V (6S1P) |
| Capacity | 20000mAh |
| Energy | 444Wh |
| Energy Density | Up to 380Wh/kg |
| Discharge C Rate | 5C |
| Charge Rate | Support 1C Charging |
| Cycle Life | ≥90% capacity after 500 cycles |
| Weight | 1910±150g |
| Dimensions (H × W × L) | 58±2 × 76±2 × 192±5 mm |
| UFOPOWER Semi-Solid State Battery Technology | |
| Chemistry Composition | NMC 811 (Ni 80% / Mn 10% / Co 10%) |
| High Energy Density | Up to 380Wh/kg, 30% longer endurance |
| Cycle Life | ≥90% capacity after 500 cycles |
| Product Features | |
| Higher Energy Density | Up to 380Wh/kg for extended flight time |
| Support 1C Charging | Fast charging capability for reduced downtime |
| Lightweight Design | 15% weight reduction compared to same capacity batteries |
| High Safety | Complex-coated separator with over-discharge resistance (2.5V) |
| BMS Compatible | Can be equipped with intelligent protection board (BMS) |
| High Temperature Storage | Excellent performance under high temperature conditions |
| Semi-Solid State UAV Battery Solution (Customizable) | |
| Voltage Options | 1S ~ 24S Configurations Available |
| Capacity Options | 1Ah ~ 99Ah Customizable |
| Energy Density Levels | 300Wh/kg / 330Wh/kg / 350Wh/kg / 380Wh/kg / 400Wh/kg |
| Ultra-High Voltage | 4.45V Ultra-High Voltage Option Available |
| Applications | |
| Long Endurance Mapping Mission Drones | Surveying, Mapping & Inspection |
| Heavy Payload Multirotor Drones | Aerial Photography / Agriculture / Delivery |
| Other UAV Applications | eVTOL / Surveillance / Firefighting / Light Show |
