UFO Battery is a professional supplier of lithium-ion batteries and power solutions.

LiFePO4 Telecom Battery (GPRS optional) | 48V100Ah| Telecommunication, solar storage, UPS, Backup Power

LiFePO4 Telecom Battery (GPRS optional) | 48V100Ah| Telecommunication, solar storage, UPS, Backup Power

Model
LiFePo4 48V100Ah battery pack with GPRS Data Transmission Units(DTU)
MOQ
Sample acceptable
Payment
T/T, PayPal, L/C
Delivery time
30 days
Start Port
Shenzhen Port
Certification
CE, UN38.3, MSDS
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
UFO LiFePO4 Battery | Backup Power

Battery choice is the most critical decision to control the telecom tower’s costs. Where generators and VRLA batteries provide backup power for cell towers, system reliability is critical.



In remote areas, the price for fuel delivery can exponentially increase costs. Routine site maintenance is often limited by seasonal access. Maintenance and transport costs make generators and lead-acid batteries not ideal.



UFO LiFePO4 telecom battery is a smart battery that can help you save costs.



-- This battery for cell towers is equipped with GPRS function, so batteries can be monitored remotely through an online way.
-- This saves the cost of onsite testing which lead-acid batteries required to monitor battery performance and health.

-- With a compact and modular design that allows to expanding the capacity as our needs. It is compatible with the best-selling solar inverters on the market.


LiFePO4 Battery Pack [Optional GPRS] | Solar Storage System, Telecommunication, UPS, Backup Power, Battery Storage



UFO LFP 48V 100Ah

Item

General parameter








ELECTRICAL CHARACTERISTICS

Nominal Voltage

48 V

Nominal Capacity

100 Ah

Energy

4800Wh

Internal Resistance≤ 60mΩ
Cycle Life

≥ 4000 cycles @ 80% DOD, 25℃, 0. 2C
≥ 2800 cycles @ 100% DOD, 25℃, 0.2C

Desig Life≥ 10 Years
Months Self Discharge≤ 2%, @35°C
Efficiency of Charge ≥ 98%
Efficiency of Discharge

≥ 100% @0.2C
≥ 96% @ 1C





Charge

Charge Cut-off Voltage54.0V± 0.5V
Charge Mode1C to 54.0V, then 54.0V charge current to 0.02C (CC/CV)
Charge Current100A
Max. Charge Current130A
Charge Cut-off Voltage54V±0.2V(Floating charge voltage)



Discharge

Continuous Current100A
Max. Continuous Discharge Current130A
Discharge Cut-off Voltage38V±0.2V



Environmental

Charge Temperature

0℃~55℃ (Under 0℃ extra heating mechanism)

Discharge Temperature-20℃~60℃ (Under 0℃work with reduced capacity)
Storage Temperature-40℃~55℃ @ 60%±25% relative humidity
Water Dust ResistanceIp21 (The battery cabinet supports Ip55





Mechanical

Method

15S1P

Battery Cell Mode

Prismatic

Plastic Case

Iron (Insulation painting)

Dimensions (L x W x H)

442 x 400 x 221 mm

Weight:

50kg

Gravimetric Specific energy100Wh/kg



Other

Other Protocol (Option)

RS232/RS485/Modbus or CAN

SOC Light

4 * LED

Reverse polarity protection(Option)

Yes

Limit charge current20A

PRODUCT DESCRIPTION


◤NEW GENERATION: GPRS Data Transmission Units(DTU) in Lithium-ion Battery◢

LiFePO4 Battery Pack Can Be Equipped with GPRS DTU


UFO LiFePO4 batteries for energy storage (Telecom battery) can be equipped with GPRS Data Transmission Units(DTU), which provides remote control of LiFePO4 battery and help monitor the status of LiFePO4 battery.

The GPRS can offer convenience to you for monitoring the performance of LiFePO4 battery, including battery temperature, voltage and more.

The GPS
 can provides positional tracking of battery to prevent from stealing. Whenever you use the battery APP on your cellphone, you are able to track the location of your LiFePO4 battery easily.




Shop for Business
66 Available CouponsShop for Business

66 Available CouponsShop for Business66 Available Coupons

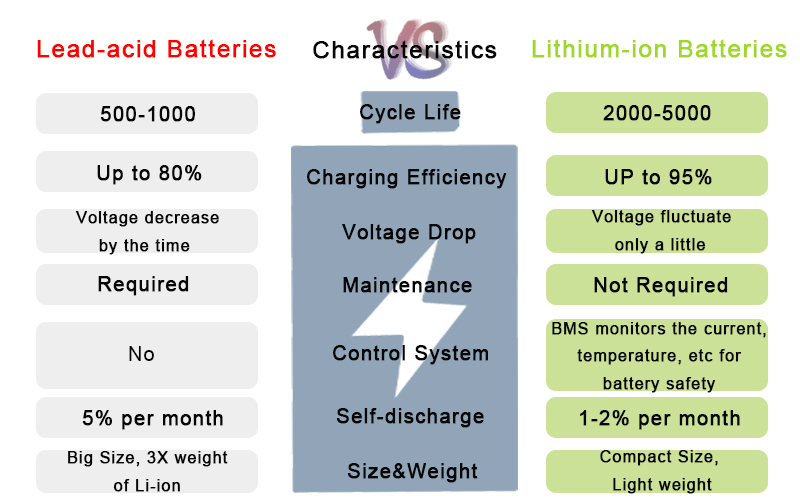

 Why Choose UFO Lithium-ion Battery?

01 Longer Cycle Life: Offers up to 10times longer cycle life and 5 \times longer float/calendarlife than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.

02 Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in”

replacement forlead acid battery.

03 Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.

04 Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or

combustion due to high impact, over charging or short circuit situation.

05 No Memory Effect: Support unstable partialstate of charge (UPSOC) (charge/discharge) utilization.



 UFO LiFePO4 Telecom Battery with Rack Cabinet, which is available for 4 units of LiFePO4 Telecom Backup Battery.







Function


Air switch
Overcharge detection function
Over discharge detection function
Over current detection function
Short circuit detection function
Temperature protection function
Balance function
Communicate function
Reverser Polarity protection (Optional)
Dry contact function (Optional)
LCD Screen (Optional)
Other function according to your requirements



Key Features


19” Rack-mount design
Compact modular integration
Easy connection in series or parallel
Intelligent battery management system
Built-in cell monitoring and balancing
Real-time monitoring
Multi-level safety design
Temperature detection function
Alarm function
Convenient for installation
Abundant communication interfaces
High operational reliability
Can be 15s and 16s
Intelligent BMS and standard BMS for option




PERFORMANCE CHARACTERISTICS

We  provide one stop solutions to various field and professionaly tech supoprt since 2010. Fully automatic intelligent production equipment,

combined with automation control technology and  lithium-ion battery.




PRODUCT APPLICATION

Line vision control technology, smart robots to realize "whole line equipment + robot + software control" Intelligent
